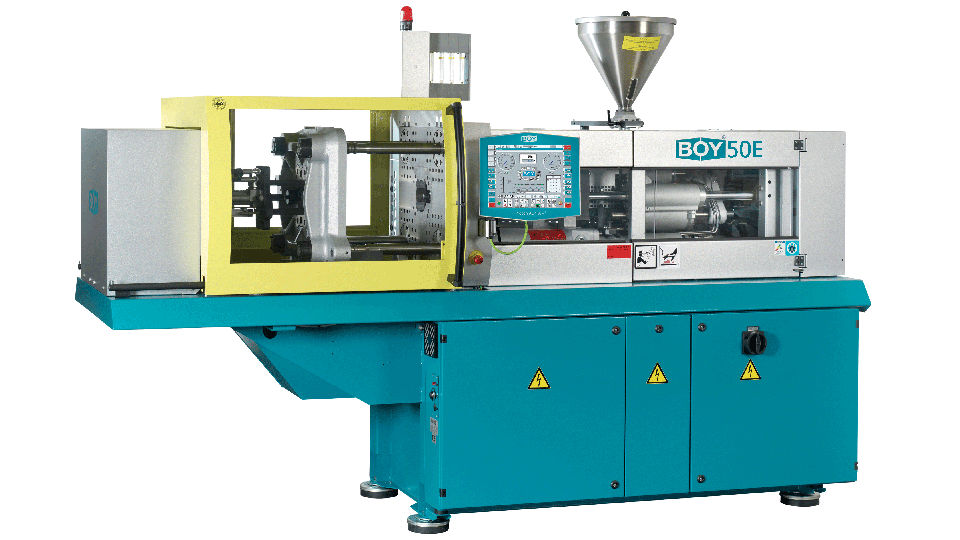

BOY 50 E

The new machines of the “E” series are the top models. Because of the servo-motor pump drive, they are superior to comparable competitors’ machines. BOY has managed to achieve or even top the positive features of electro-mechanical machines while simultaneously eliminating their disadvantages. Once more, BOY has proven their leading role and innovative strength regarding energy saving technologies, achieving yet another decisive breakthrough.
Entry with high power scope. In the standard execution of this injection moulding machine already a variety of functions are included. The BOY injection moulding machine equipped with the servo-motor pump drive and the Procan ALPHA ® 2 has 500 kN clamping force.

More energy efficient, quieter, faster, more precise.

Technical data

Euromap Size:
500-56 / 500-69 / 500-82 / 500-170
Screw Diameter:
18, 22, 24, 28, 32, 38, 42
Max. Stroke Volume:
173.2 cm³ (theoretical)
Max. Injection Flow:
204.8 g/s (theoretical)
Max. Spec. Injection Pressure:
2739 bar
Max. Daylight Between Platen:
650 mm
Max. Opening Stroke:
500 mm
Distance Between Tie Bars:
360 x 335 mm
