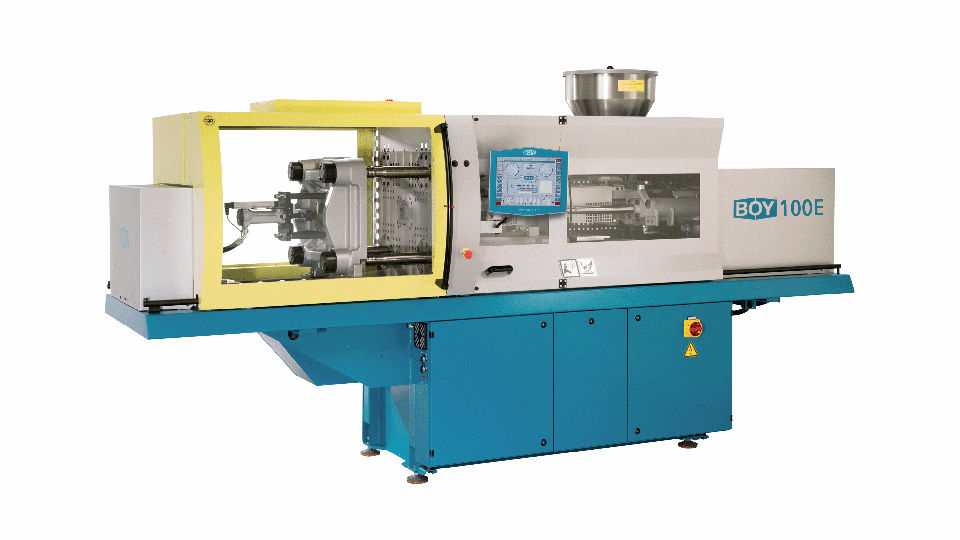

BOY 100 E

The machines of the “E” series are our top models. Due to the servo-motor pump drive, they are superior to comparable, competitive products. It is possible to achieve and even surpass the positive features of electro-mechanical machines while simultaneously excluding their disadvantages. Once more, we have proven our leadership and innovative strength with regard to energy-saving technologies, achieving yet another trend-setting breakthrough.

Modern technology
Greater distances between tie bars (430 x 360 mm) and platen distances of 725 mm as well as a clamping force of 1000 kN are the characteristics of the BOY 100 E.

And as it can be expected from a leading product, the BOY 100 E disposes of all the excellent features typical for injection moulding machines from Neustadt-Fernthal.

Technical data

Euromap Size:
1000-215 / 1000-220 / 1000-400
Screw Diameter:
28, 32, 36 ,38, 42, 48 mm
Max. Stroke Volume:
289.5 cm³ (theoretical)
Max. Injection Flow:
333.2 g/s (theoretical)
Max. Spec. Injection Pressure:
2798 bar
Max. Daylight Between Platen:
725 mm
Max. Opening Stroke:
475 mm
Distance Between Tie Bars:
430 x 360 mm
