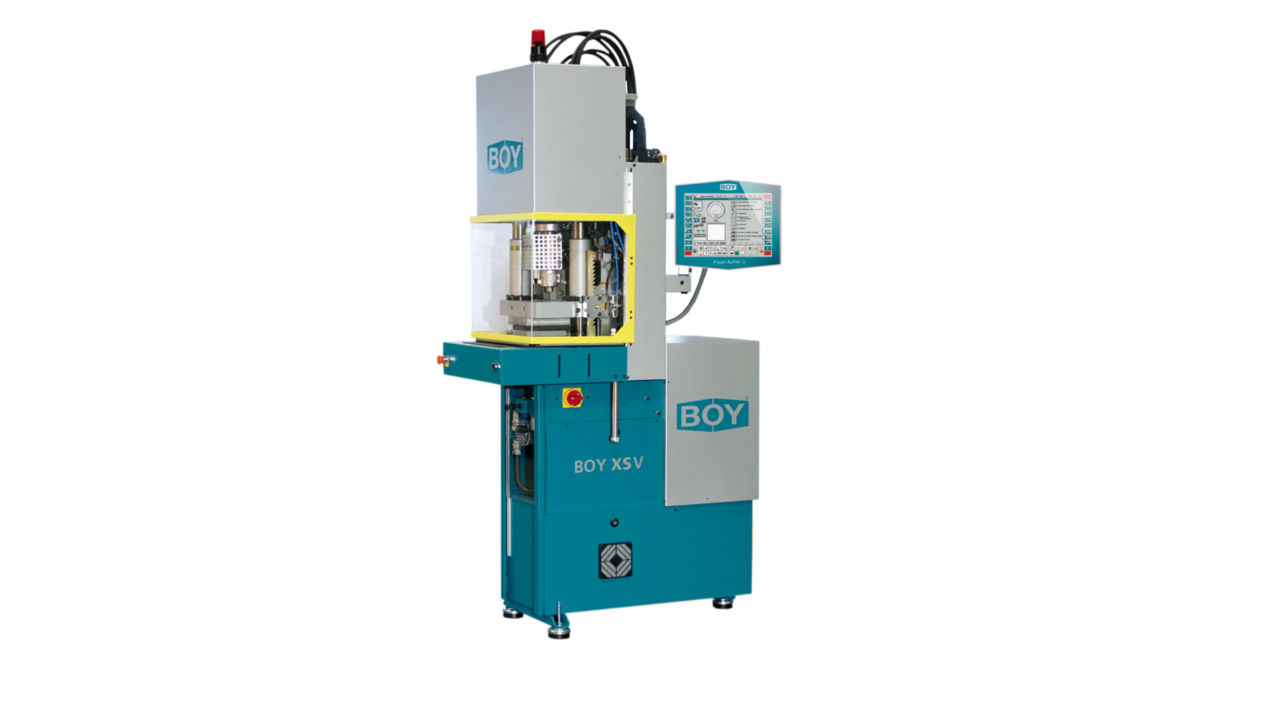

BOY XS V

The BOY XS V features vertically arranged clamping and injection units. Being the smallest model, it supplements the reliable series of BOY insert molding machines. This machine is suited to overmold metal parts, semi-finished parts or, for example, also cable endings. The fixed lower platen prevents the inserted parts from shifting during mold closing. The two-platen clamping system, in connection with the diagonally arranged tie bars, ensures best possible access from all sides, also for the insertion and removal of parts, as well as other automation equipment. Furthermore, the machine is ideally suited for integration into a production line.

Technical data

Euromap Size:
100-3 / 100-14
Screw Diameter:
8, 12, 14, 16 mm
Max. Stroke Volume:
8.0 cm³ (theoretical)
Max. Injection Flow:
36.8 g/s (theoretical)
Max. Spec. Injection Pressure:
3128 bar
Max. Daylight Between Platen:
250 mm
Max. Opening Stroke:
150 mm
Distance Between Tie Bars:
160 mm
