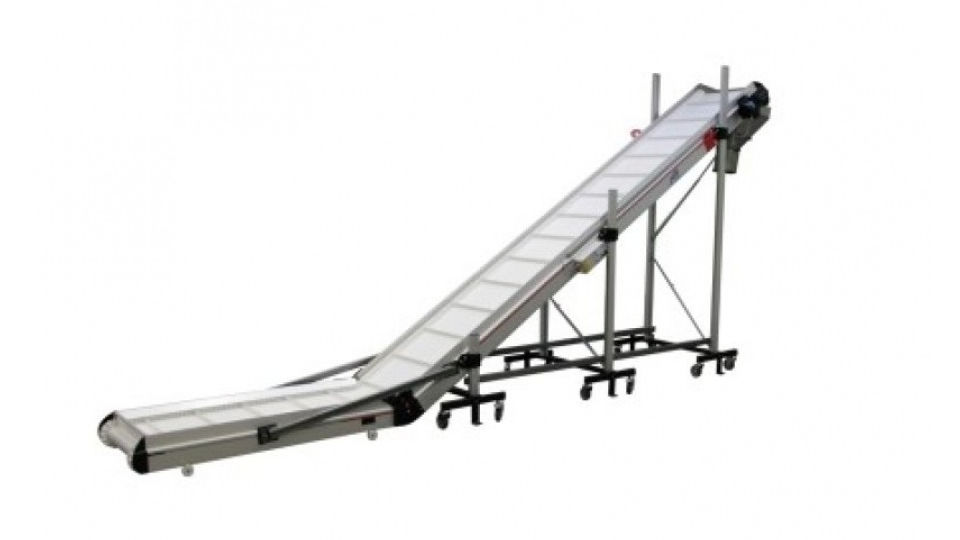

Multi-Tech Belt Conveyor, Type NL-HM 140
The underframe HM 140 is predominantly used with larger angled belt conveyors which have to be equipped with multiple supports for best stability. The supports can be mounted laterally at the frame and can be moved along the profile grooves. Longitudinal, crosswise and diagonal struts (optional) grant for an enormously stable construction, even with heavy loads.
- Extra stable underframe for heavy load or large frame heights
- Flexible arrangement of struts, e.g., to avoid interfering edges
- Height adjustment alng the whole length of profile
- Continuously variable angle between 0° and 60°
Belt Conveyors with Negative Angle
The MTF Multi-Tech angled belt conveyors are probably unique on the market with regard to processing quality and functionality. The patented belt tensioning mechanism ensures that the belt tension remains constant and balanced over the entire angle adjustment range between 0° and 60°. The combination of the high-quality materials for outer belts covers effectively prevents the belt from forming a bump in the belt bend and thus, from wearing out. The MTF angled belts therefore do not need a forcible belt guide and control. This reduces wear and downforce. Stable bend covers, chain protection parts and protection parts for belt rotation made of aluminium make these belt conveyors extremely resistant and reliable assistants in your production.
