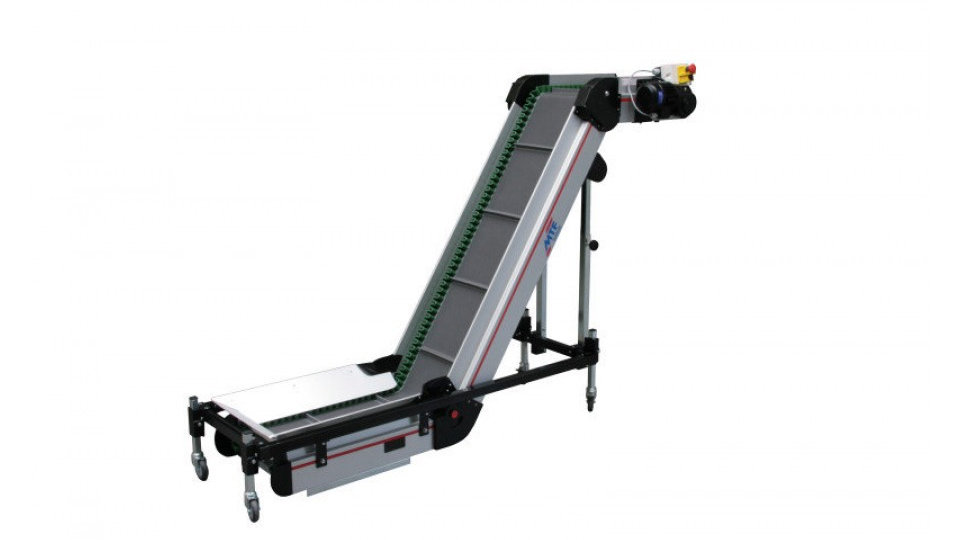

Multi-Tech belt conveyor, type ZL-HB 310
Z-shaped conveyors are equipped with the underframe HB 310 if lowest feeding heights are to be realised. The flat belt thereby hangs in the underframe and thus, can be lowered to the floor. The angle adjustment of the steep belt is easily possible through two integrated gas pressure springs.
- Low feeding heights for long flat belts
- Easy angle adjustment due to gas pressure spring support
- Stable underframe for force-free bend geometry
Z-shaped Belt Conveyors
The MTF Z-Belt Conveyors provide a standard continuous angle adjustment of both belt bends from 0° to 60°. Thanks to the patented belt tensioning mechanism the belt cover tension remains constant over the entire adjustment range. The sophisticated construction of inner and outer profiles sets standards with regard to easy service and maintainability. This way, e.g. the inner frame including all rollers and guides remains untouched during a belt replacement. Infinite combination options with regard to dimensions, belt materials, drive units, underframes and attachment elements allow these belt conveyors to be used universally.
