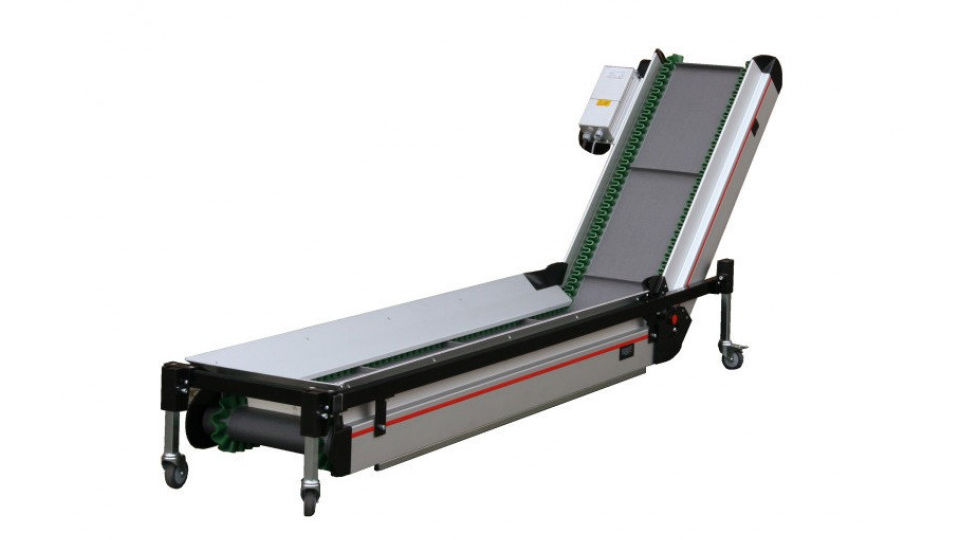

Multi-Tech belt conveyors, type NL-KB 010
Conveying out of the machine at a lowest possible height into small containers – this is the application of the underframe type KB 010. The flat belt thereby hangs in the underframe while the steep belt part freely overhangs forwards.
- Suitable for steep belts of up to approx. 1,000mm long and 400mm wide
- No disturbing supports underneath the steep belt
- Low delivery/feeding heights are possible
- Continuous angle adjustment between 0° and 60° possible
Belt Conveyors with Negative Angle
The MTF Multi-Tech angled belt conveyors are probably unique on the market with regard to processing quality and functionality. The patented belt tensioning mechanism ensures that the belt tension remains constant and balanced over the entire angle adjustment range between 0° and 60°. The combination of the high-quality materials for outer belts covers effectively prevents the belt from forming a bump in the belt bend and thus, from wearing out. The MTF angled belts therefore do not need a forcible belt guide and control. This reduces wear and downforce. Stable bend covers, chain protection parts and protection parts for belt rotation made of aluminium make these belt conveyors extremely resistant and reliable assistants in your production.
