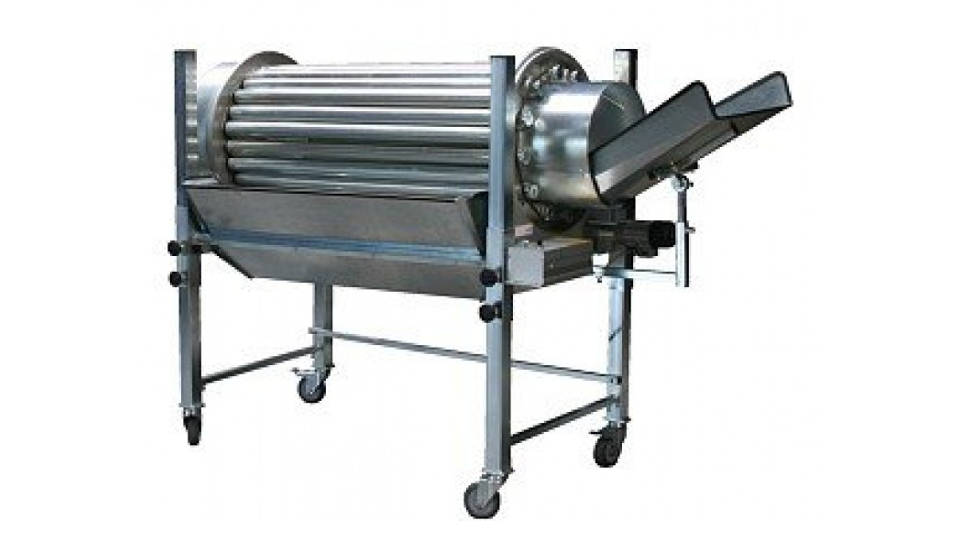

Separation drum Type PZ 3512 B

Separation drum with central adjustment Type PZ 3512 B in a reinforced configuration for use in die-casting industry or general metalworking. Rollers of steel or stainless steel and a reinforced base provide the necessary stability for use in a harsh environment.
The separation drum Type PZ with central adjustment is the fastest, easiest, and most precisely adjustable separation system in the MTF separation program. This separation system has no competition in its possible uses. Through the patented central adjustment, the distance between all of the rollers in the cage can be newly adjusted with one handle and centrally locked. The separation is infinitely adjustable from 3 to 53 mm.

Especially large separation drums with separation lengths of 1,000 or 1,200 mm, large drum diameters and steel rollers often require a reinforced base .

• Base infinitely adjustable in height and angle
• Available for all separation drum types and sizes
• Can be combined with soundproofing hoods, covers, etc.
• Available in additional special configurations, e.g. with steel lattices, container uptakes, additional supports, etc.
• Reinforced wheels with large diameter for uneven floors
• Further attachment options available for the die-casing industry – e.g. motor covers, steel cable sheathing as protection for the drive units, etc.

Advantages

• Height and tilt simply and infinitely adjustable
• High-quality, high-performance and high-torque planetary gear motors for constant or infinitely adjustable drum speeds
• Rollers in the drum cage made of plastic, steel, stainless steel or aluminium
• Except for the plastic rollers, all other rollers are available in foam-coated versions for noise reduction
• Swivel intake slide with cushioned polyamide coating
• Covering and function panels made of anodized aluminium or galvanized steel (V2A on request)
• The drum cages are easily interchangeable
• Stable double-column base with four locking wheels
