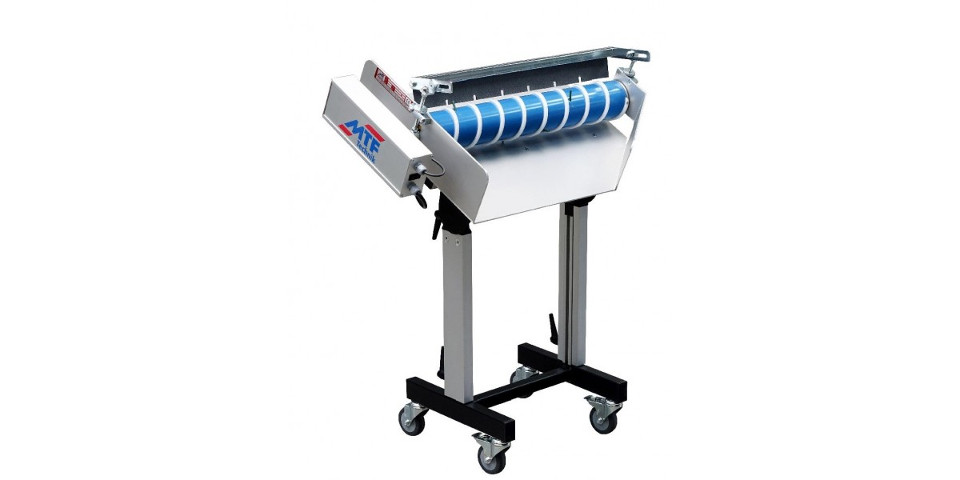

Standing separator Type MSL 600
With the use of the screw separator “MSL/ MSR,” the larger parts of the items to be separated are moved to the side with the help of the screw. Smaller pieces slide out between the height-adjustable outlet slide and the screw roller.
- Separator lengths of 600 mm and 800 mm as standard
- Screws available in a variety of materials with different screw surfaces and heights
- Simple adjustment of the separation gap with knurled nuts
- Speed adjustable at seven levels from 15 to 95 rpm
- Overload protection prevents piece jams and injuries to operating personnel
- Low energy use due to efficient planetary gear drive
- Polyester scraper above the screw prevents accidental skipping of pieces or sprues
- Adjustable spikes for easier separation of pieces
- Telescoping base, easily adjustable in height and angle
- Wheels with locks for stability
