BOY 35 E VV

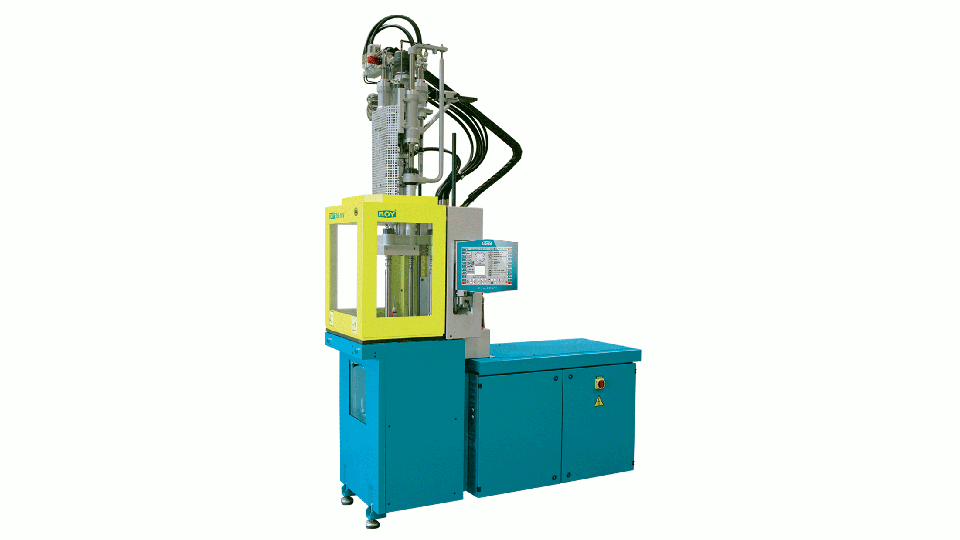

The basic concept of the 35 E VV is quiet similar to the BOY 35 E horizontal injection moulding machine – merely the injection and clamping unit are arranged vertically by a 90° rotation.

The lower platen is fixed. Therefore, a shifting of the insert parts during mould closing is excluded.

Shot weights of up to 69.5 g (PS) for highly precise applications, compact dimensions, ample space for peripheral equipment on the machine frame, as well as the possibility to also use smaller injection units make the BOY 35 E VV an ideal solution for fully automatic overmoulding of insert parts.

Technical data

Euromap Size:
350-16 / 350-45 / 350-56 / 350-81 / 350-96
Screw Diameter:
14, 18, 22, 24, 28, 32 mm
Max. Stroke Volume:
76.5 cm³ (theoretical)
Max. Injection Flow:
122.2 g/s (theoretical)
Max. Spec. Injection Pressure:
2739 bar
Max. Daylight Between Platen:
500 mm
Max. Opening Stroke:
300 mm
Distance Between Tie Bars:
280 x 254 mm
