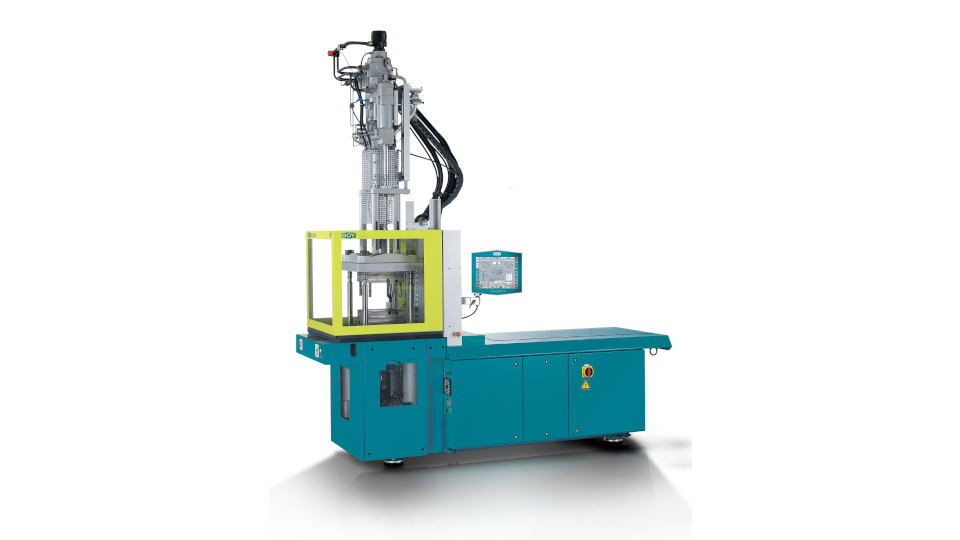

BOY 60 E VV

The largest BOY insert moulding machine now has a clamping force of 600 KN (performance increase of 50 KN more).

Compact dimensions and ample space on the machine frame for peripheral and optional equipment ensure optimum integration possibilities for automation systems.
Generous distances between tie bars furthermore offer enough space for mounting large and multicavity moulds.

The BOY 60 E VV features of a large shot volume, thus enabling large-volume over-moulding without problems. In total four screw diameters are available.

Technical data

Euromap Size:
600-215
Screw Diameter:
28, 32, 38, 42 mm
Max. Stroke Volume:
173.2 cm³ (theoretical)
Max. Injection Flow:
189 g/s (theoretical)
Max. Spec. Injection Pressure:
2798 bar
Max. Daylight Between Platen:
550 mm
Max. Opening Stroke:
300 mm
Distance Between Tie Bars:
360 x 335 mm
