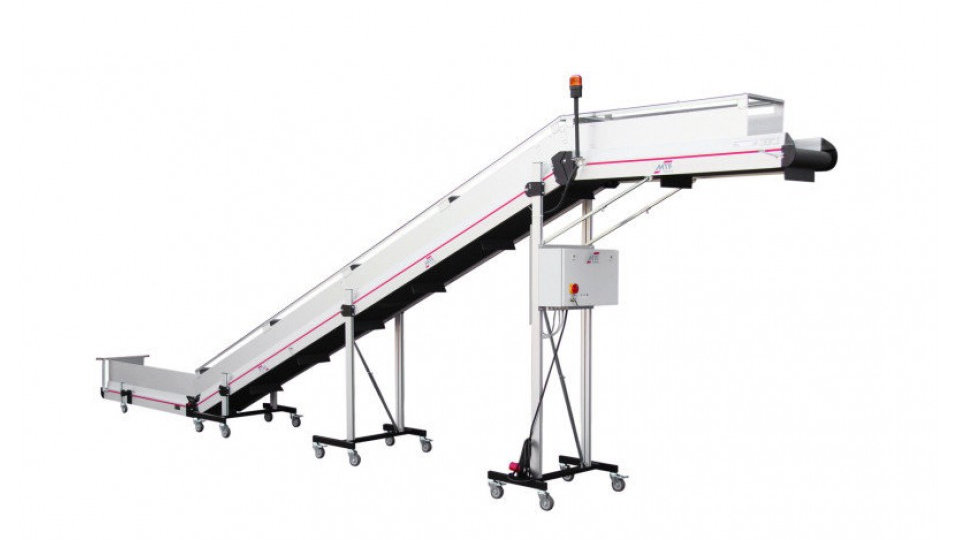

Multi-Tech belt conveyor, type ZL-HM 140
Long conveyor belts must be supported at several points in order to ensure the required stability. For this purpose, the underframe HM 140 is particularly suited. The individual supports can be fastened in the lateral grooves over the entire belt length.
- Stable underframe for large belt dimensions
- Large height adjustment range; freely definable due to the individual support heights
- Continuous angle adjustment between 0° and 60°
Z-shaped Belt Conveyors
The MTF Z-Belt Conveyors provide a standard continuous angle adjustment of both belt bends from 0° to 60°. Thanks to the patented belt tensioning mechanism the belt cover tension remains constant over the entire adjustment range. The sophisticated construction of inner and outer profiles sets standards with regard to easy service and maintainability. This way, e.g. the inner frame including all rollers and guides remains untouched during a belt replacement. Infinite combination options with regard to dimensions, belt materials, drive units, underframes and attachment elements allow these belt conveyors to be used universally.
