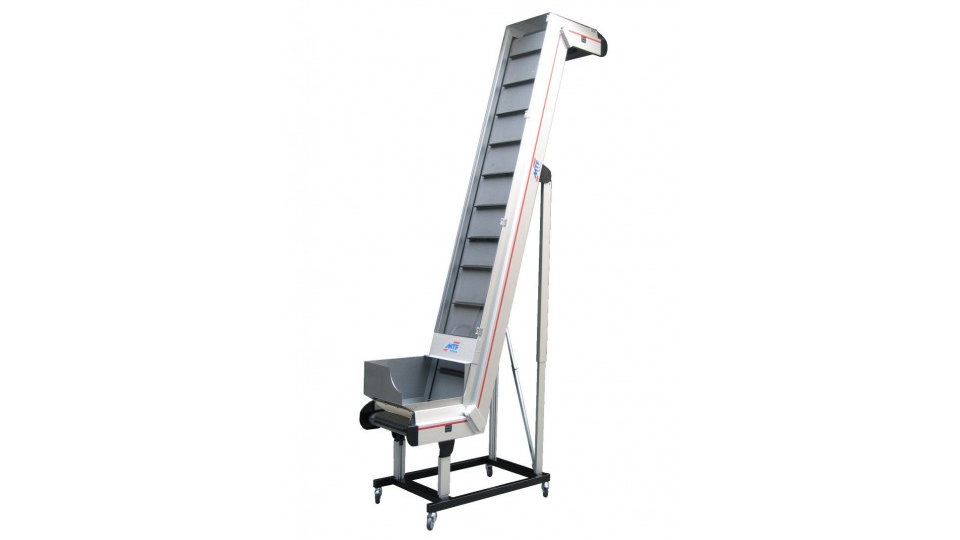

Multi-Tech belt conveyors, type ZLF-LD 010

For Z-belt conveyors, which e.g. have to convey at very steep levels due to lack of space, the underframe type LD 010 is suitable. The height adjustment is possible via telescopic supports which are mounted in the lower groove of the conveyor belt profiles by means of supports rotatable by +/-90°.

• Stable steel underframe
• Continuous angle and height adjustment of the underframe
• Flexible attachment of the supports to the conveyor profile and thus ideal adjustment to the corresponding conveying tasks or applications.

Belt Conveyors with Positive Angle

Conveyor with positive angle are used in many industries and for the most different applications. They often serve as feeding belt for assembly or automation processes or for the feeding into grinders. In connection with an attachment hopper or a bunker conveyor belt connected upstream they can also take on the function as a batching belt conveyor and feed or deliver parts in batches to the subsequent process. The angle is continuously adjustable to any angle between 0° and 60° whereby the belt tension remains constant over the entire adjustment range.
