Small Conveyor Type INL-HE 010

Angled small conveyors with mostly short flat belt parts are often equipped with an underframe of type HE 010. This applies especially when laterally overlapping profiles are not allowed due to space limitations.

• The underframe is moveable alongside the lateral grooves of the conveyor
• Moveable and fixed versions available
• Easy and continuous height adjustment by means of telescopic underframe profiles
• Steep belt positions are possible

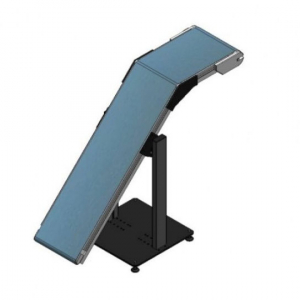

Belt Conveyors with negative angle

MTF |-Tech angled Belt Conveyors are a perfect solution where transported goods must be discharged from very low machine shafts and then transported upwards. They are often used for packaging machines or e.g. plastic injection moulding machines or blow forming machines where they serve as discharge conveyors. The conveying angle is fixed (30°, 45° or 60°). The maximum belt width is 500mm. Depending on the particular task, numerous different belts, drive units and base frame types are available.
