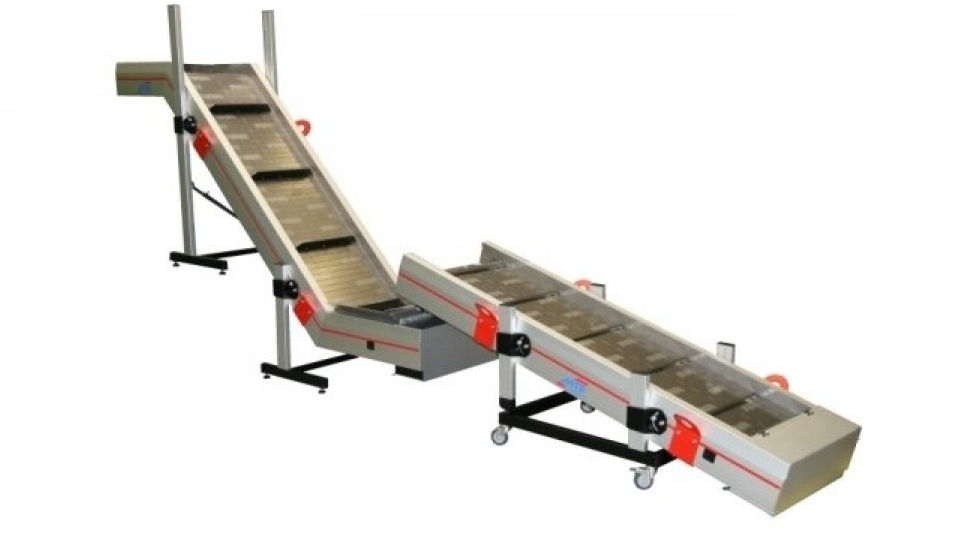

Steel hinged plate conveyors Type GV-LD 120 and ZVF-HM 140

The removal of parts from a pit often requires special base designs, since different floor levels serve as installation surfaces. For the Z-Belt, the base HM 140 enables this transportation to take place, while the straight belt is supported by a compact base at a high level. Type LD 120 is best for this use.

Advantages:

• Flexible adaptation to different height levels
• Divided conveyor line to enable later insertion in the available machine bed and to ensure the accessibility to the machine plinth
• Side crane hooks on both belts for easy handling

Z-shaped Steel Hinged Plate Conveyors

Angled conveyors in Z-shape with steel hinged plates are especially useful in metalworking. They serve as chip conveyors, as output belts from machine shafts, etc. The high temperature resistance as well as the robust construction make them essential in foundries, press plants, for screw finishing and many other areas of metalworking.
The standard belt angles are 30°, 45°, 60° and 75°.
