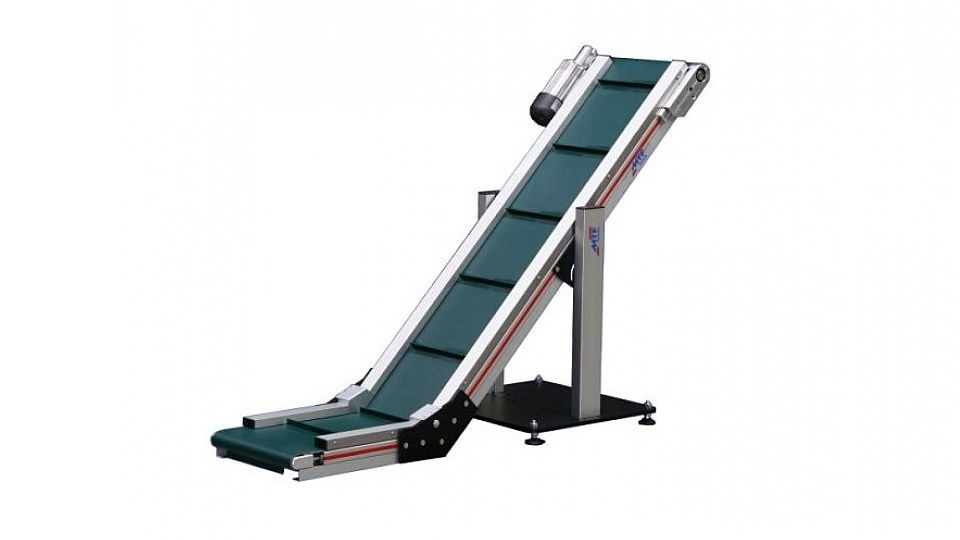

L-shaped small conveyor belt type INL-I2P

Stable against collapse and reasonably priced – these are the characteristics of base frame type I2P . A compact steel base plate is the foundation for stable aluminium profiles which are mounted to the lateral sides of the conveyor belt frame. The maximum frame width of the conveyor belt is 350mm.

• Large height adjustment range
• Step-less tilt adjustment between 0° and 60°
• Base frame supports can be moved along the body of the belt
• Several base frames are used for longer belts

Belt Conveyors with negative angle

MTF |-Tech angled Belt Conveyors are a perfect solution where transported goods must be discharged from very low machine shafts and then transported upwards. They are often used for packaging machines or e.g. plastic injection moulding machines or blow forming machines where they serve as discharge conveyors. The conveying angle is fixed (30°, 45° or 60°). The maximum belt width is 500mm. Depending on the particular task, numerous different belts, drive units and base frame types are available.
