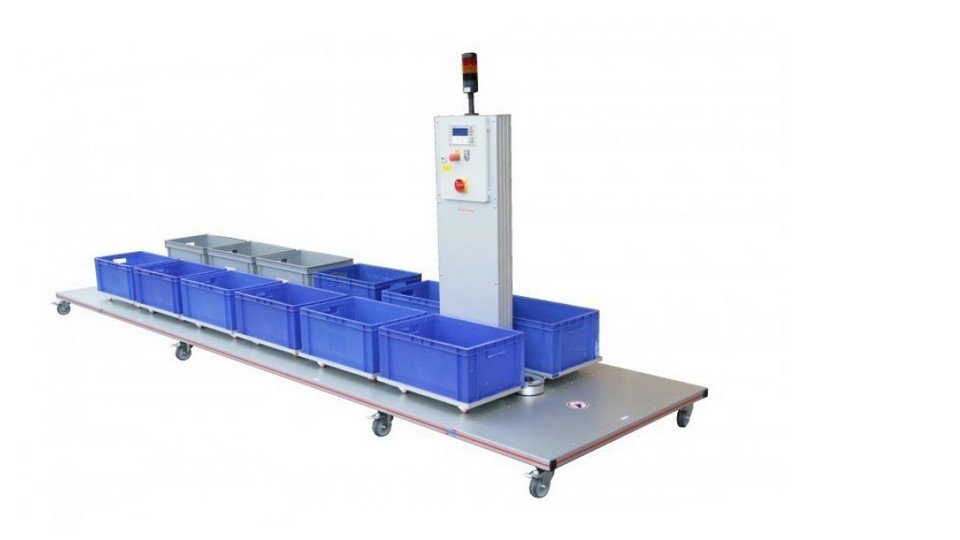

Box storage Type Multi-Linea
The pictured system is used at a machine that sometimes produces right and left pieces at the same time. In this case one box is constantly filled with right and one box with left pieces. Optionally after output for a preset time or after reaching a target piece count, the system cycles two positions futher.
If a new kind of piece is produced, a box is constantly filled and also simply cycled onward.
Advantages:
- Freely programmable Siemens SPS with customer-specific special functions (e.g. double forward cycling, realisation of interfaces, signal displays, etc.).
- 12 container uptakes for plastic boxes 600x400x320mm
Multi-Linea
In many production processes, the available space increasingly becomes a problem. The move to automatised, unmanned production and the associated temporary material buffering provide lean solutions. Here the Multi-Linea from MTF Technik offers the optimal solution. Depending on the design, cartons, boxes or bags can be automatically filled and then buffered. The Multi-Linea consists of a ground plate with uptake vehicle for containers or bags. Because of the narrow drive concept, a very good use of space can be achieved with this system. Especially when the space available is narrow but relatively long, the Multi-Linea can show its strengths.
