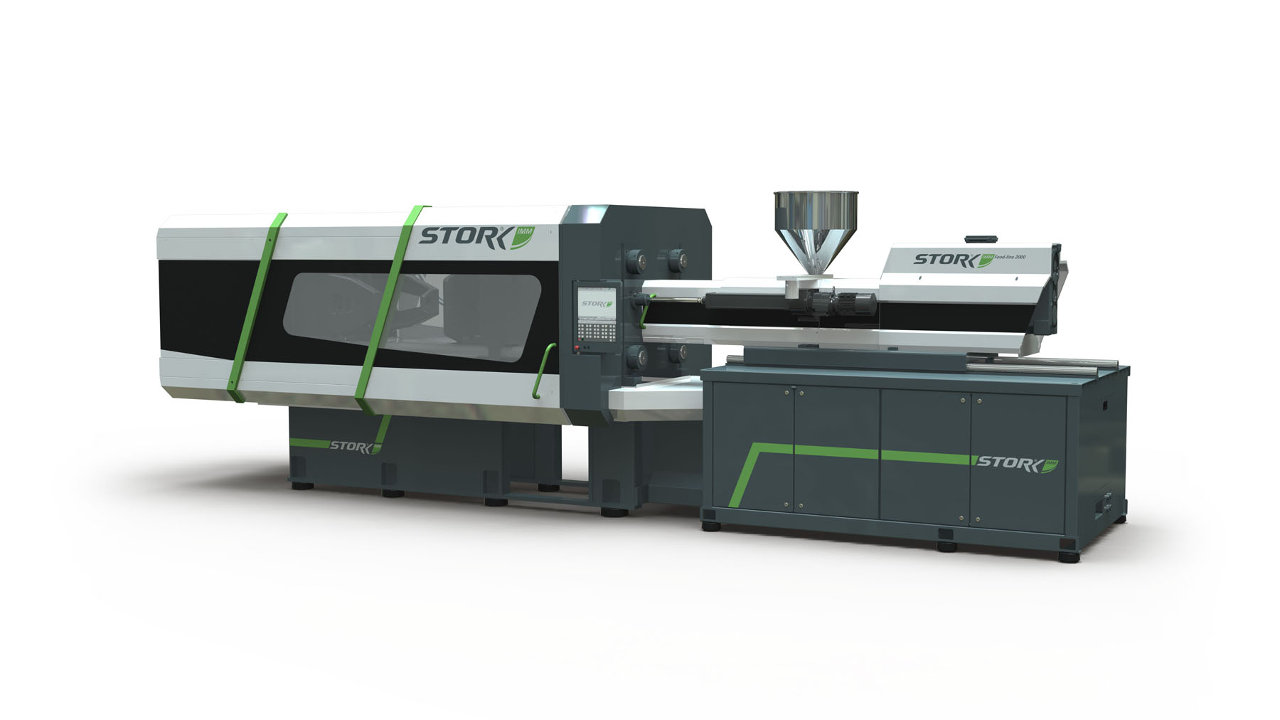

FOOD-LINE: The Stork Food-Line represents top quality in injection moulding machines for manufacturing thin-walled food packaging.
The production of containers for the food-industry requires maximum hygiene. The Stork Food-Line can also be lubricated with food-grade oil and lubricants. Stork uses extremely stiff platens for symmetric filling and minimum clamping force. Stork offers a wide choice in drive systems which enables us to offer you always the fastest and most energy efficient machine.
Extremely thin-walled food packaging requires extremely high injection speeds. The Stork Food-Line combines an extremely high injection speed with a fast and accurate switch-over to holding-pressure. Stork also supplies fully electric machines. Stork electric drives are distinguished by a robust rack and pinion drive that allows for the highest speeds. The rack and pinion drive has proven to be the most reliable drive. Injection moulding machines are often part of a production cell. Stork offers turn-key solutions in cooperation with the highest reputed suppliers.
Clamping-unit
Fast and Smooth
- Robust 5-point toggle system guarantees fastest and smoothest movements
- Reinforced linear rail guidance provides accurate durable mould guidance
- Increased opening strokes for IML are available
- Extremely stiff platens are used for symmetrical filing and minimum clamping-force
- The extremely fast and precise mould security protects your valuable moulds
- Progressive lubrication with active monitoring ensures high reliability and long life-time
- Suitable for food-grade lubricantInternal tie-bar clamping-force measurement increases process quality
Drives
Accurate and energy efficient
- Parallel movements of all functions enables shortest cycle-times
- Hybrid accumulator drive for fastest speeds and extremely short response times
- Comes standard with Stork controlled energy-optimised fast variable pumpIn-line high pressure filtration increases reliability
- Frequency controlled main engine reduces idle losses
- Electrical clamping unit with robust rack and pinion drive and regenerative unit allows for shortest cycle-times at lowest energy consumption
- Electric injection fine-tuned for thin-walled applications
SC1301 Smart Touch
Intelligent and user-friendly
- The IPC with 19”multi-touch screen presents all information in a clear and orderly fashion
- Stork’s own software development department provides us full control over process and optimisationIn-house software development guarantees short delivery-times in software changes
- Proven user-friendly concept
- Free programmable core-pulling and air-valve sequences are easy to program
- Integrated hot-runner with graphical display and optional current monitoring, boost and follow-me-function increases process quality and controllability
- Remote service enables fast service intervention via our Stork help-desk
- The ECO page allows for energy optimisation of the process
Injection-unit
High output and homogenous melt
- Special mixing screws up to and including 27 l/d deliver highest output and optimum dispersion of master-batch
- Extremely fast injection and switch-over are ultimate conditions for quality in thin-walled injection moulding
- The robust shut-off nozzle with large bore reduces pressure-drop
- 2K-solutions in different arrangements are available for different applications
- High circumferential speeds enable short plasticizing times and high output
