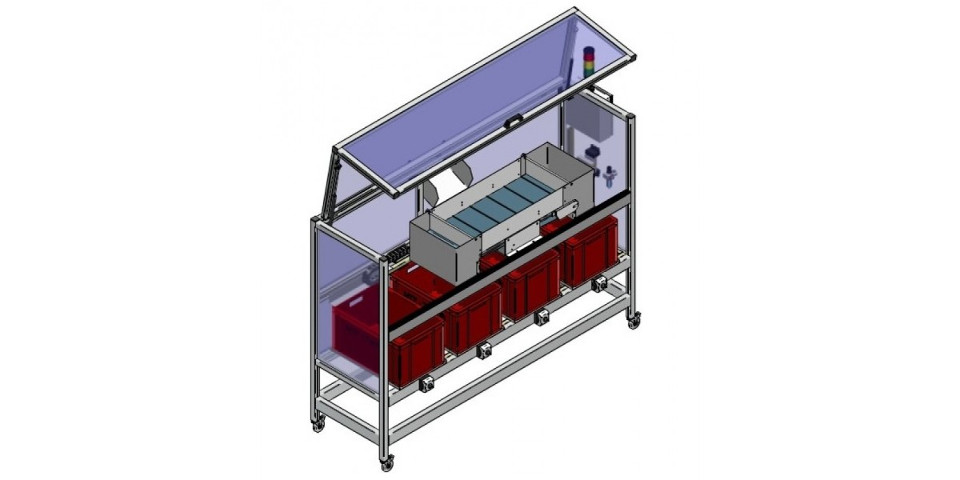

Pneumatic linearly shiftable small conveyor belt Type lL-SONDER
The linear buffer offers an especially space-saving and perfectly enclosed solution with containers that remain still and a moveable distribution belt.
Advantages:
- Linearly moveable and reversible belt above the container level
- Depending on the desired buffer capacity, pneumatic rod cylinders, rodless cylinders or electric linear actuators are installed for the positioning of the distribution belt
- Additional pneumatic valves can be mounted at the outlets on both sides of the distribution belt to ensure the count accuracy
- Clean-room-suitable slide bearing of the shifting elements
- Frame of closed aluminium profiles for ease of cleaning
- Complete enclosure of the system with polycarbonate sides and pneumatic spring-supported top
- Acknowledgement button as indicator light for every container
- Siemens S7 counter control
- Indication of the operating conditions with a signal light
- Container presence control via sensors
Shifting Buffer
Shifting buffers are used in places where the containers to be filled remain stationary. Especially with small buffer amounts for which a multi-story belt system in combination with a lift unit does not make sense, the shifting buffers offer an exceptionally efficient and compact solution.
Depending on the task, the systems can also be designed for use in the clean room. Smooth surfaces and the use of stainless steel and anodized aluminium in combination with high-quality belt materials prevent wear and particle emissions.
