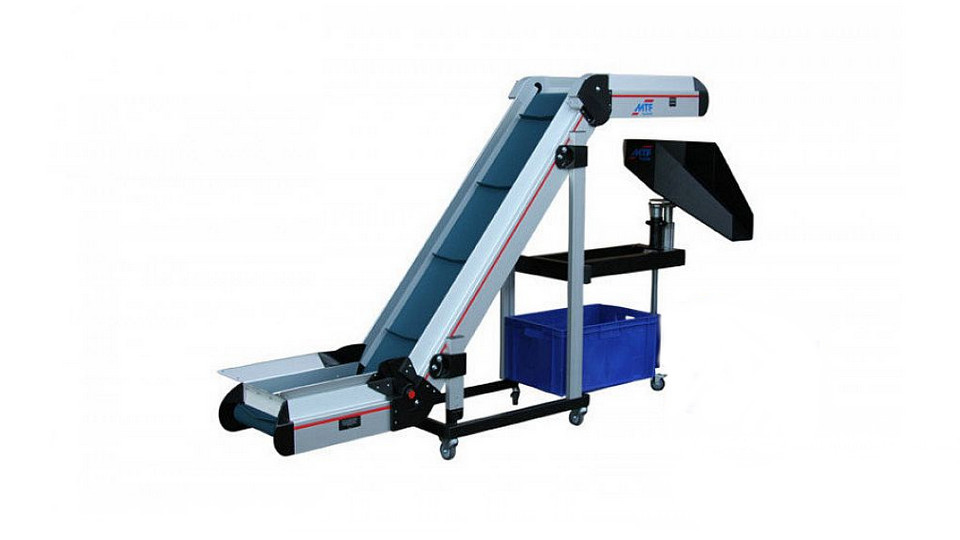

Swing slide Type Multi-Rounder MR-A1

For applications with which the conveyor belt and distribution guide function as a unit, the rotary distributor is used as an attached device. The distributor is connected individually to the conveyor frame or base depending on the task. It can likewise be adapted to almost any other manufacturer’s devices.

Advantages:

• Conveyor belt and rotary distributor can be run as a unit
• Speed and control of the belt run time through the count control of the distributor
• Simple addition to MTF belts – also after the fact
• Can also be connected to third-party belts
• Turning or swinging use adjustable through the controller
• Infinitely adjustable height and tilt of the slide
• Planetary gear motor with brake for exact positioning

Multi-Rounder

The MTF Multi-Rounder is used for part counting and distribution into different containers. In addition, it is also used when, for example, pieces must be cooled in different containers after the production process or bulk pins must be set aside in containers. Depending on the application, it can be used as a rotary distributor with an action radius of 360° or as a swing slide with a radius of up to 270°. The MTF counter control is very easy to operate. It measures machine signals and controls other peripheral devices, such as a feed belt, if necessary. Apart from the standard version of the slide made from hard PVC or stainless steel various materials and sizes are available. Special output functions and interfaces can be realised with freely programmable controls, e.g. Siemens S7, VIPA, Bollrath, etc.
