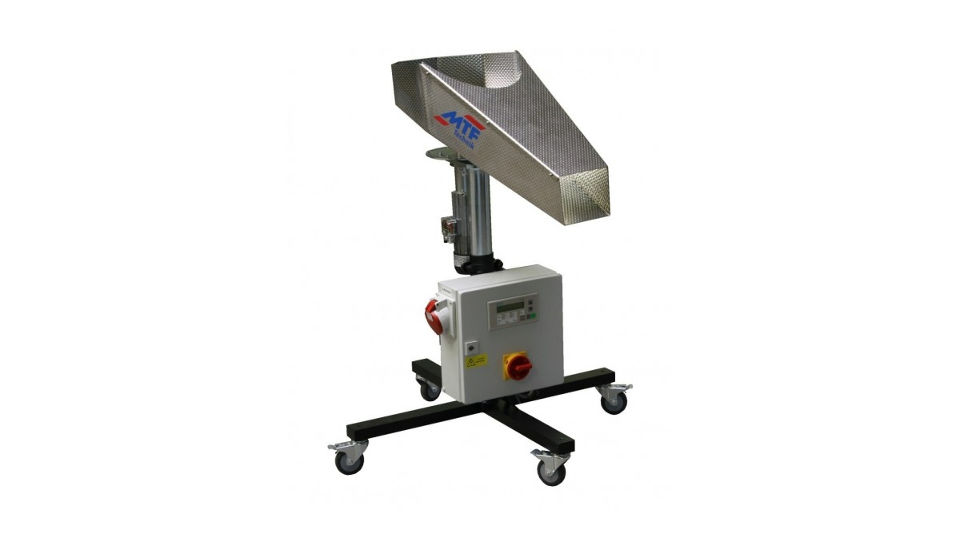

Swing slide Type Multi-Rounder MR-S1
In the version with movable base and Siemens controller, the Multi-Rounder is exceptionally flexible in its use. The stable base made of solid steel material provides a low center of gravity and stable position.
Advantages:
- Pattern-rolled slide plate for prevention of material adhesions, e.g. due to stamp oils
- Cover over the slide to prevent pieces from jumping out
- 400V-socket for connecting other peripherals to the control cabinet
- Siemens 87 control with individual programming according to customer needs
- Movable base with locking wheels
Multi-Rounder
The MTF Multi-Rounder is used for part counting and distribution into different containers. In addition, it is also used when, for example, pieces must be cooled in different containers after the production process or bulk pins must be set aside in containers. Depending on the application, it can be used as a rotary distributor with an action radius of 360° or as a swing slide with a radius of up to 270°. The MTF counter control is very easy to operate. It measures machine signals and controls other peripheral devices, such as a feed belt, if necessary. Apart from the standard version of the slide made from hard PVC or stainless steel various materials and sizes are available. Special output functions and interfaces can be realised with freely programmable controls, e.g. Siemens S7, VIPA, Bollrath, etc.
